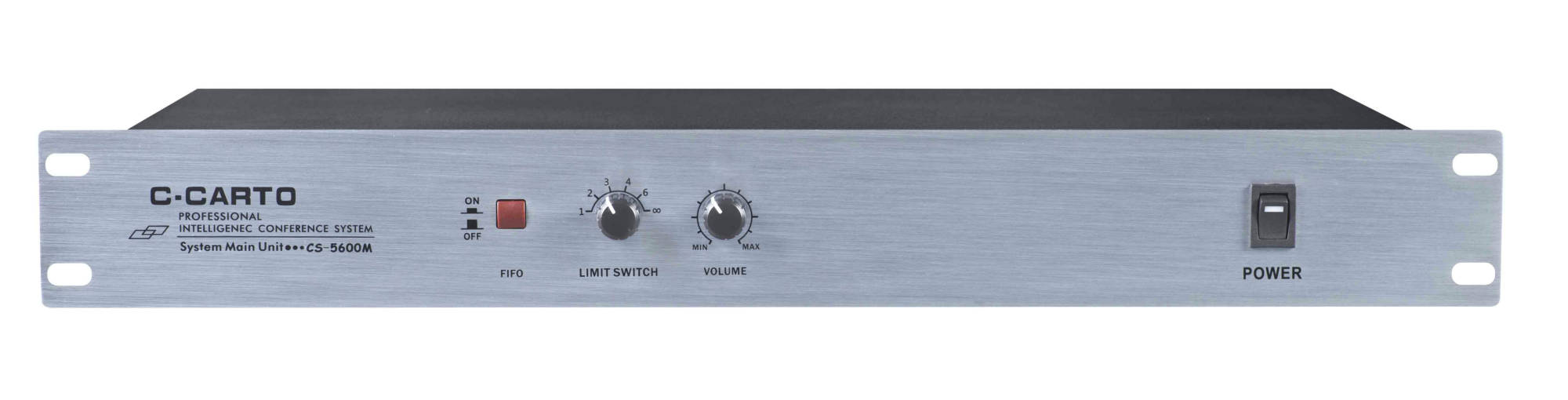

CS - 5600 - m central processing unit

CS-5600M is a wisdom discussion conference system central processor, with high cost performance, super simple equipment, humanized technology  operation. With excellent operational amplifier circuit processing, reducing the distortion, making the voice more clearly, innovated chairman mode, Override mode, limit mode, fully open mode. Each system can connect with

 60 microphone unit, two ways series connection output, it widely use in any size of hall, hotel, bank, company conference hall and international large scale multi-language meeting center





↘Chairman mode: press "FIFO", the gear switch adjust to"1".only permit the chairman unit opening

↘Override mode: press "FIFO", limit gear adjust to"2,3,4,6",when the microphone opening quantity is equal to the limit quantity, the before opened all representatives will be all closed,

the chairman unit is out of control

↘Limit mode:with1,2,3,4,6,5 speaker number selection ,the chairman unit is out of control

↘Fully open mode: the limited gear adjust to "00",the microphone unit can all open

↘With volume output control, multiple audio output method, balance output ,unbalance and recording output
