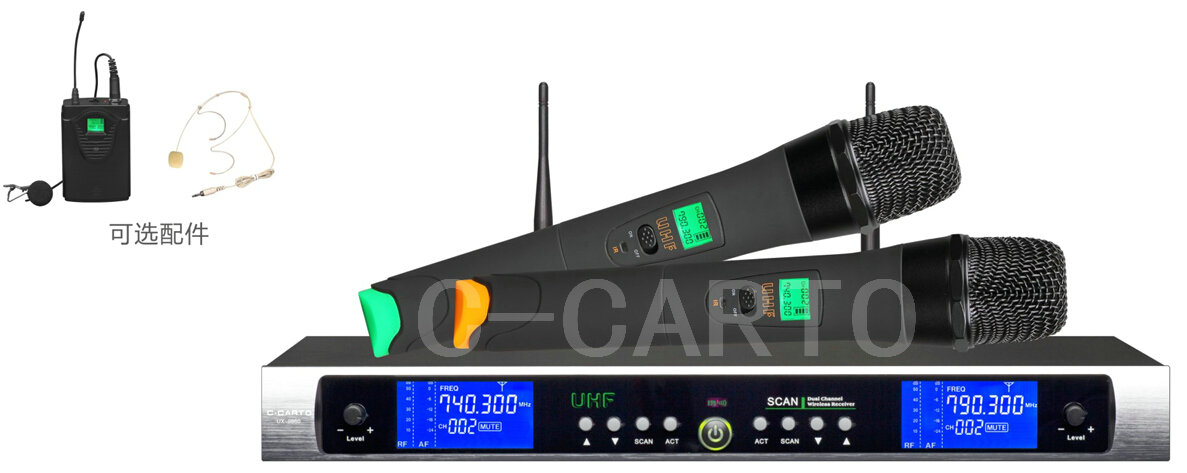

UX-9860

Receiver parameter:

↘Frequency range:　　740-820MHz　

↘The shocking way :phase locked loop synthesis（PLL )

↘Adjustment method: FM

↘The maximum frequency deviation：　±50KHz

↘Sensitivity:18dBuV( can be adjusted)　

↘S/N:>89dB

↘Frequency response:60Hz-15KHz(±3dB)

↘Audio output：0-300mV/600Ω

↘Balance output:0-300mV/600Ω

↘Dynamic range:≥105dB

↘Working voltage: DC 12V

↘Working current:50mA

↘Working tempreture:-10℃至+40℃

Launcher technology parameter:

↘Frequency range:　　740-820MHz

↘Emission power:10mW

↘Frequency stability:≤ ±0.005%

↘Adjusted method :FM

↘The maximum frequency deviation：　±50KHz

↘Frequency selection :infra-red matching the frequency comfirm the launcher working frequency

↘Working power: 2 no.5 battery

↘Working current:≤100mA

↘Working tempreture:-10℃至+40℃
