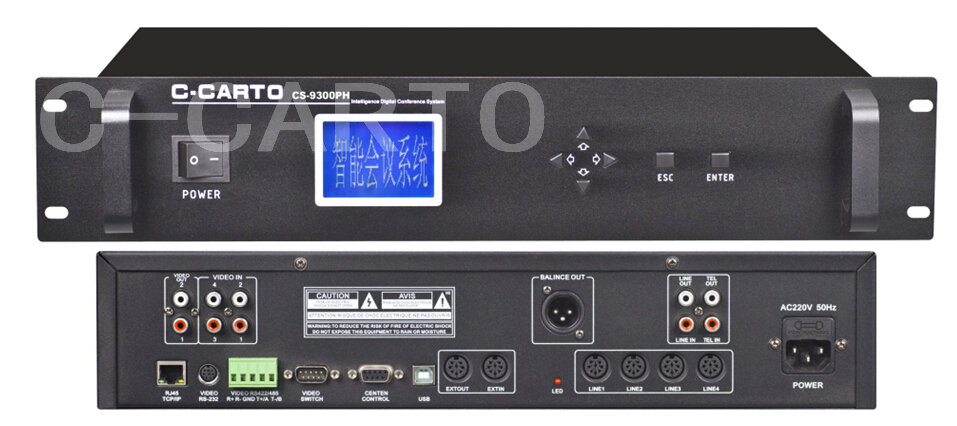

Video tracking discussion system is composed by hardware and software ,it adopted wisdom digital control technology, connected to the computer with USB interface, TCP/IP internet interface, WiFi LAN and RS232 serial port control such many options. Supporting venue layout, online testing, venue microphone on/off control. Achieving multifunctional, the new generation full
function digital video tracking conference system of divorcing from the computer and easy to operate, it widely used in any size of hall, hotel, bank, company conference hall and
international large scale multi-language conference center.
↘Supports WiFi LAN data exchange, achieving wireless control center processor all the control function, it bring a great convenience for using and engineering installment.
↘Supports system hot plug, the host screen supports Chinese/English menu operation and perpetual calendar display.
↘Supports RS232 central control, with two-dimensional code function, it achieved perfect coordination with central control.
↘Supports external audio input and sound recording output
↘Supports telephone conference access port
↘The system can set up locking and removing microphone all the operated function, including language selection
↘System input and output with electronic volume adjustment function, it effective to eliminate the noise
↘Speaking mode have: the first in and first out, the later in and first out, automatic mode, discussion mode, chairman mode
↘With sound control opening microphone function and speaking time limited function(it can select 1-999 seconds)
↘ Connect to the computer with USB access interface ,TCP/IP internet access interface, WiFi LAN and RS232 serial port control such many kind of selection
↘ Connect to the computer can simulate conference site scene layout, it can click on or off all the unit microphone at any time
↘Supports PELCO P/D,SONY EVID70 RS422 camera protocol
↘Supports 4 ways standard definition video switch, and with external RS232 video switch protocol port supports connect high-definition rectangular switch
