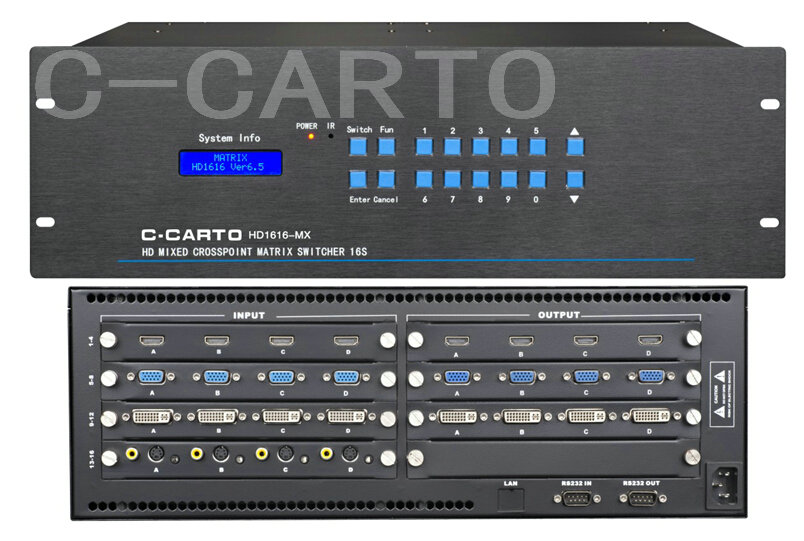

HD modularization mixing matrix is a high performance HD audio and video signal exchange equipment, supports 4-32 channel signal input,4-32 channel signal output. The largest specialty product is on supporting every kind of video format signal input, it can use multiple HD digital signal input, output exchange, any signal output can select any signal source and can’t interfere the other output freely
↘Modular design, card inserted structure
↘Supports 4/8/12/16/20/24/28/32 channel video signal input output switch
↘Manual key body with anti abrasion technique
↘Supports HDMI.DVI-D,SD/HD/3G-SDI, VGA, V, YPbPr signal input
↘Supports HDMI.DVI-D,SD/HD/3G-SDI, VGA, V, YPbPr signal output
↘Supports the highest resolution 1920×1200@60hz，2048×1080p@60Hz
↘The front panel with LCD liquid crystal screen, real time display the input output state, display for any operation of matrix are have corresponding light state
↘Supports multiple control port:RS232,internet control port and the front panel key
↘Supports 10 venue memory and invoking
↘Supports HDCP for HDMI signal, it also can analyze HDCP
↘For VGA signal and VISA standard resolution display on HDTV standard display equipment ,it can adjust the horizontal resolution, vertical resolution, line frequency and field frequency, and brightness contrast.
↘When the matrix restart after the sudden power off in the running process ,the matrix corresponding each channel input output state will keep the memory, same before the power off, not any change, no need to reset.
↘DVI/HDMI input card supports EDID programmable
↘automatic having cable balance for input DVI/HDMI digital signal, extending the signal source equipment to the transmission of matrix distance.
↘Each channel signal with independent 4 level gain adjustment function, resolving the signal decline or whiten picture.
↘Attached Android APP procedure software, it can through the Android panel computer for signal switch directly.
↘Attached PC control software, it suitable for WindowXP/7 system, it can have signal switch through the computer
