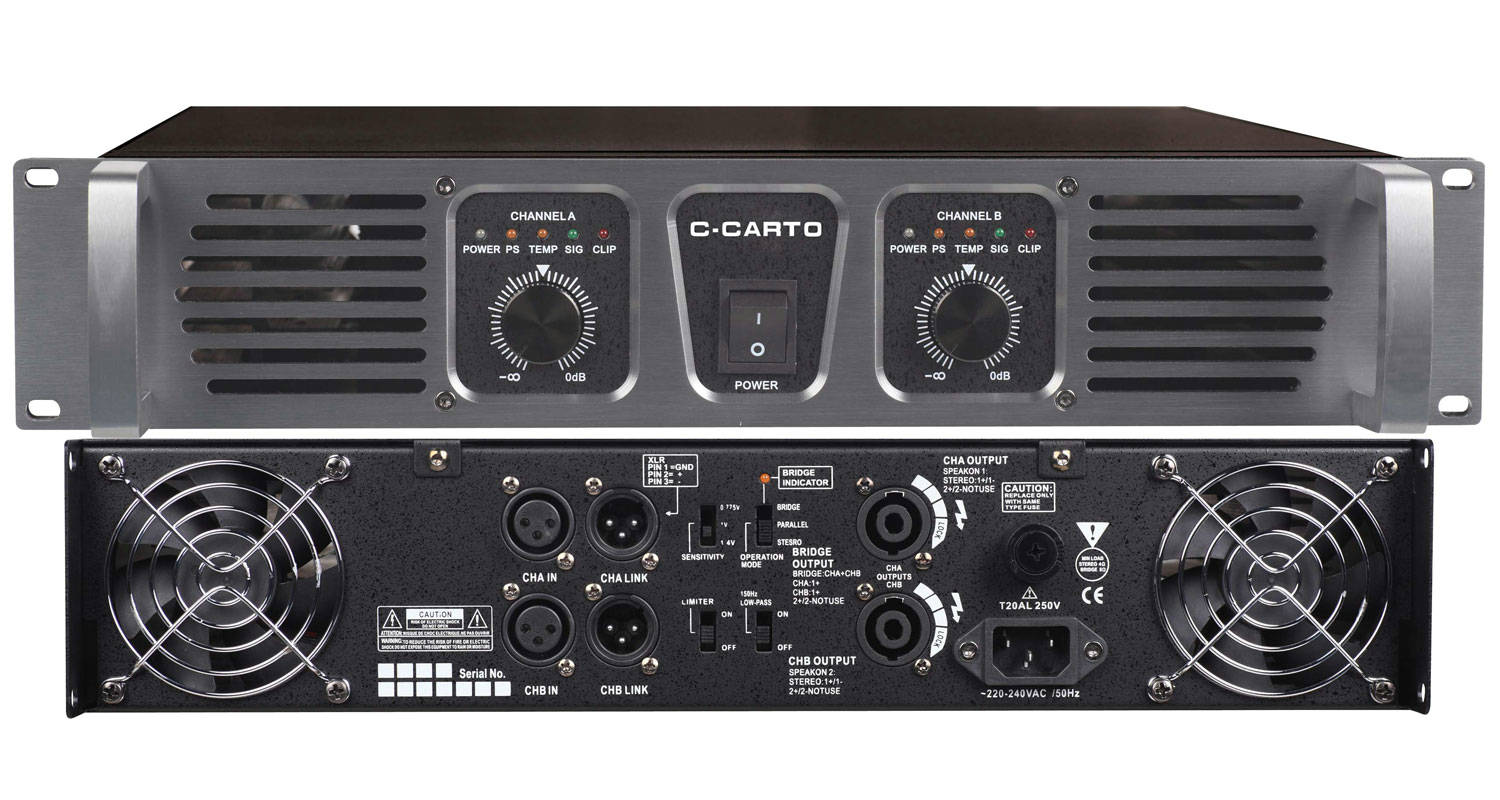

V2500/V3500/5000/6000

2 u chassis structure, good vibration resistance specially designed for multi-function meeting project, input means has two kinds of imbalance and balance, stereo and mono, bridge three different kinds of working mode, USES the relay time delay circuit, boot soft start, thus protecting the speaker effect, all the advantages of reliable boot delay, overload, over temperature and zero drift multiple protection, 40 points in stepping potentiometer, the use of high precision long life, can precisely control the output power, automatic protection circuit including DC (direct current), over-current, over-voltage, overheating and dynamic automatic limiter protection, guarantee the stability of the power amplifier, the highly effective work.
V2500
8 Ω stereo output power: 250 w * 2
4 Ω stereo output power: 500 w * 2
Bridge 8 Ω mono output power: 500 w * 1
Frequency response: 20 hz - 20 KHZ plus or minus 0.5 dB
Total harmonic distortion: THD + N (20 hz - 20 KHZ) 0.01%
Signal to noise ratio: > 100 db
The input sensitivity: 0.775 V
Output circuit: ClassAB
Power conditions: 110 v, 120 v, 110 v, 240 v 50 to 60 hz
Size: H132mm L488mm W469mm x x
V3500
8 Ω stereo output power: 350 w * 2
4 Ω stereo output power: 700 w * 2
Bridge 8 Ω mono output power: 700 w * 1
Frequency response: 20 hz - 20 KHZ plus or minus 0.5 dB
Total harmonic distortion: THD + N (20 hz - 20 KHZ) 0.01%
Signal to noise ratio: > 98 db
The input sensitivity: 0.775 V
Output circuit: ClassAB
Power conditions: 110 v, 120 v, 110 v, 240 v 50 to 60 hz
Size: H132mm L488mm W469mm x x
V5000
8 Ω stereo output power: 500 w * 2
4 Ω stereo output power: 800 w * 2
Bridge 8 Ω mono output power: 1000 w * 1
Frequency response: 20 hz - 20 KHZ plus or minus 0.5 dB
Total harmonic distortion: THD + N (20 hz - 20 KHZ) 0.01%
Signal to noise ratio: > 102 db
The input sensitivity: 0.775 V
Output circuit: ClassH
Power conditions: 110 v, 120 v, 110 v, 240 v 50 to 60 hz
Size: H132mm L488mm W469mm x x
V6000
8 Ω stereo output power: 600 w * 2
4 Ω stereo output power: 1000 w * 2
Bridge 8 Ω mono output power: 1200 w * 1
Frequency response: 20 hz - 20 KHZ plus or minus 0.5 dB
Total harmonic distortion: THD + N (20 hz - 20 KHZ) 0.02%
Signal to noise ratio: > 104 db
The input sensitivity: 0.775 V
Output circuit: ClassH
Power conditions: 110 v, 120 v, 110 v, 240 v 50 to 60 hz
Size: H132mm L488mm W469mm x x
