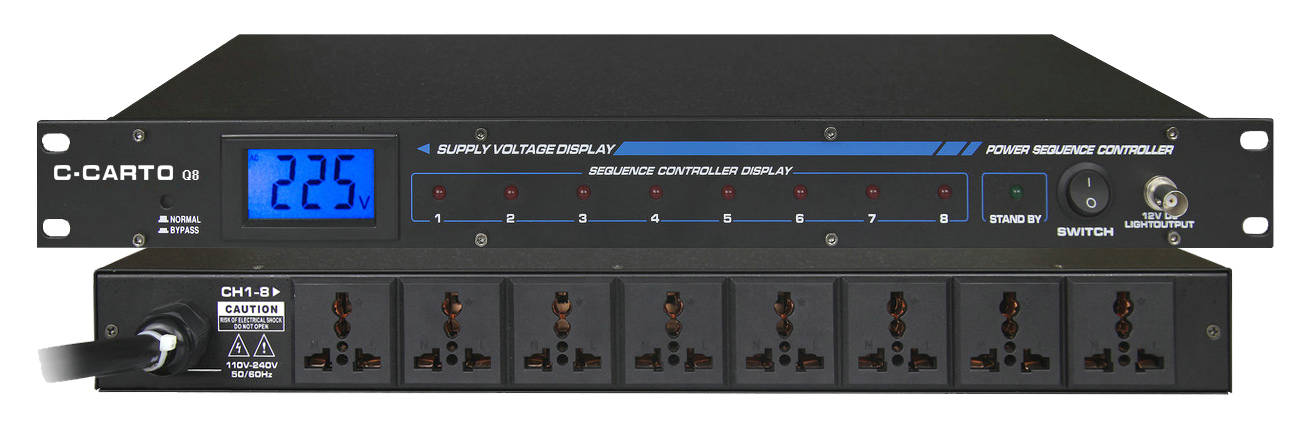

Q8 eight-way LCD power sequence

↘8 channel liquid crystal voltmeter display universal socket power timing device
↘Rated input/output voltage: alternating 110V~240V,50Hz/60Hz
↘The relay maximum output current:AC250V/30A,universal maximum output current:AC250V/10A
↘Single channel rated output power  maximum limit 2200W,safety output total power real 5000-7000W
↘It can control power 8 global universal socket output, liquid crystal voltmeter display input/output voltage indication
↘Full opening mode:1channel BNC base output 12V/400mA external connect DJ light
↘Each channel action sequence ON/OFF time delay interval time:1 second
↘The main power line 3*6 square cable, internal double panel 2 A copper circuit current  board lead
