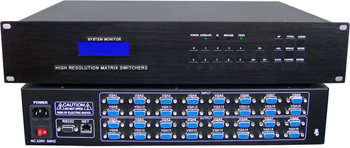

Germany west card figure C - CARTO famous brand series of VGA matrix switcher is special equipment for the computer and video display signal and high resolution digital image signal VGA display switch and broadband intelligent matrix switch equipment, professional design of high performance output with no road distribution function, select the multichannel input signal output all the way or multiple respectively output to the display device, all the way along the way will also be input signal output all the way in any or multiple output at the same time. This series of products can be widely used in large screen display engineering, multimedia teaching, lecture hall, military command and control center, hotel, traffic monitoring, multimedia conference room, audio-visual exhibition hall, etc.
Features:
Routing specification: in 16 out of 16
Standard configuration of infrared remote control, RS232 control, control panel buttons;
16 road VGA computer signal input; VGA 16 road, the signal output of the computer, can cross switch completely;
Using the latest 32-bit ARM11 embedded processor;
With 500 m high bandwidth chip, has the long-term drive function;
This product with a power switch memory protection at the scene.
Use long distance transmission distortion signal gain compensation technology;
The digital synchronous recognition processing (DSIP) technology
Round robin built-in switch function, it may set arbitrary time interval and channels
Built-in 32 group scene storage capabilities, can directly on the panel or infrared remote sensing operation
Using programmable logic array (FPGA) circuit, more stable performance;
Special port, can directly touch screen and wireless connection, plug and play.
Special TCP/IP network control function, can through the Ethernet control; (optional)
Using liquid crystal display, can display devices of each channel switching status information and input signal characteristics, intuitive and convenient
This product is the intelligent device with high reliability, used in the design of fault tolerant technique, and used the high anti-interference ability of the communication interface circuit, ensure the reliability of communication, has the function of infrared remote control and RS232 communication, users can easily complete the demonstration in the process of signal switching;
Have RS232 communication interface, easy with a computer, remote control system, or a variety of remote control devices for use;
Compatible with all market similar products code and instructions;
High quality, mass production, have higher compatibility and stability,
Can be realized ID address setting machine cascade, most can cascade 255 matrix
The control mode:
Key control: a switch directly by equipment panel key;
Remote control: the use of remote control infrared remote control switch;
Software control: use the special matrix management software of west card figure through RS232 serial port control switch;
Touch screen control: the use of west card figure programmable touch-screen (C - CARTO - TCH2100) direct control switch (optional);
Central control: use west card figure control system control switch (optional);
Network control: through the Internet control switch (optional).
Technical parameters:
VGA channel | |
Number of input ports |
16 road |
The output port number |
16 road |
bandwidth |
500MHz (-3dB),Full load |
Switching speed |
50ns(the longest) |
Signal strength |
1V p-p : Y component video、S-video,Composite video; 0.7V p-p: VGA(computer);0.3V p-p: R - and B - Y Y component video、 S-video |
Signal types |
VGA,RGBHV,RGBS, RGsB, RsGsBs high definition TV(HDTV) |
Signal to noise ratio |
〉100dB |
Return loss |
<-65dB@5MHz |
Isolation (crosstalk) |
-85dB @10 MHz, -75dB @100 MHz |
Maximum transmission delay |
The level of:50ns ;vertical:60ns |
The biggest increase/decrease time |
2ns |
Horizontal synchronous frequency response |
10KHz-155KHz |
Vertical synchronization frequency response |
25Hz-180Hz |
The input signal level |
1.2伏p-p ,5伏p-p(TTL) |
Nonlinear distortion |
<0.02%/0.02º (RL=150Ω) |
The differential phase I / 0 s |
<1.28º,3.58MHz |
The differential gain error |
0.1%, 3.58-4.43MHz |
Input to help fight |
75Ω |
Output to help fight |
75Ω |
Support the resolution |
hd480i~1080p/640X480~2560X1600(60Hz) |
Control type | |
Input/output interface |
HD15PIN(VGA)Mother's head |
The control mode |
RS - 232, infrared, keyboard panel, touch screen, control system and Ethernet control (optional) |
Control protocol (TCP) |
9600 baud, 8, 1 stop bit, and white parity checking |
Serial control interface |
2 = TX, 3 = RX, 5 = GND |
The control program |
《C-CARTO MM》 |
Synchronous channel | |
Synchronous channel input level |
TTL |
Synchronous channel output level |
TTL |
Synchronous channel input impedance |
10KΩ |
Synchronous channel output impedance |
33Ω |
Synchronous polarity |
Synchronous polarity |
Product specification | |
The power supply to AC |
110V - 240V , 50 / 60 Hz 。 The adaptive power supply |
power |
30W |
size |
482mm(long)x 280mm(wide) x 90mm(high) |
The weight of the |
6.0kg |
Rack installation |
19-inch standard height of 2 u |
The average time between failures MTBF |
48000 hourshours |
The standard configuration |
Specification, control software, the power cord, the line of control, remote control, warranty card |
