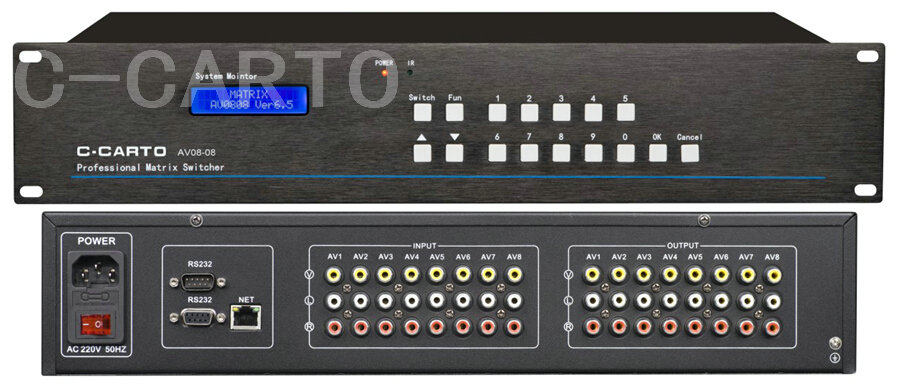

AV0808 audio and video matrix

↘Routing specification: 4/8/16/32 video signal input, 1/4/8/16/24/32 channel video signal output, it can complete cross switching

It adopted the latest 32 ARM11 mounted processor,with power off scene switch memory protection

↘It adopted the latest 32 ARM11 mounted processor, with power off scene switching money protection

↘The built-in 32 groups scene saving function, it can remote operation in the panel or infra-res directly

↘Liquid crystal screen display, the switching state of display channel ,input signal characteristic such information

↘Rs232 communication interface, it convenient cooperated using with computer, remote system or every kind of remote control equipment.

↘Compatible market all the code and instructions of same kind product

↘It can set up with ID address to achieve multi machine cascade, it can cascade 255 matrix at most

↘Control method: key, remote control,RS232,touching screen, mid-control system, Ethernet

↘信号类型：GA，RGBHV，RGBS， RGsB， RsGsBs，HDTV

↘Signal type: GA，RGBHV，RGBS， RGsB， RsGsBs，HDTV

↘Control agreement: 9600 baud, 8 bit,1 stop bit, no parity

↘The serial interface：2 = TX, 3 = RX, 5 = GND

↘Power supply: AC110-220V, 50/60 Hz
