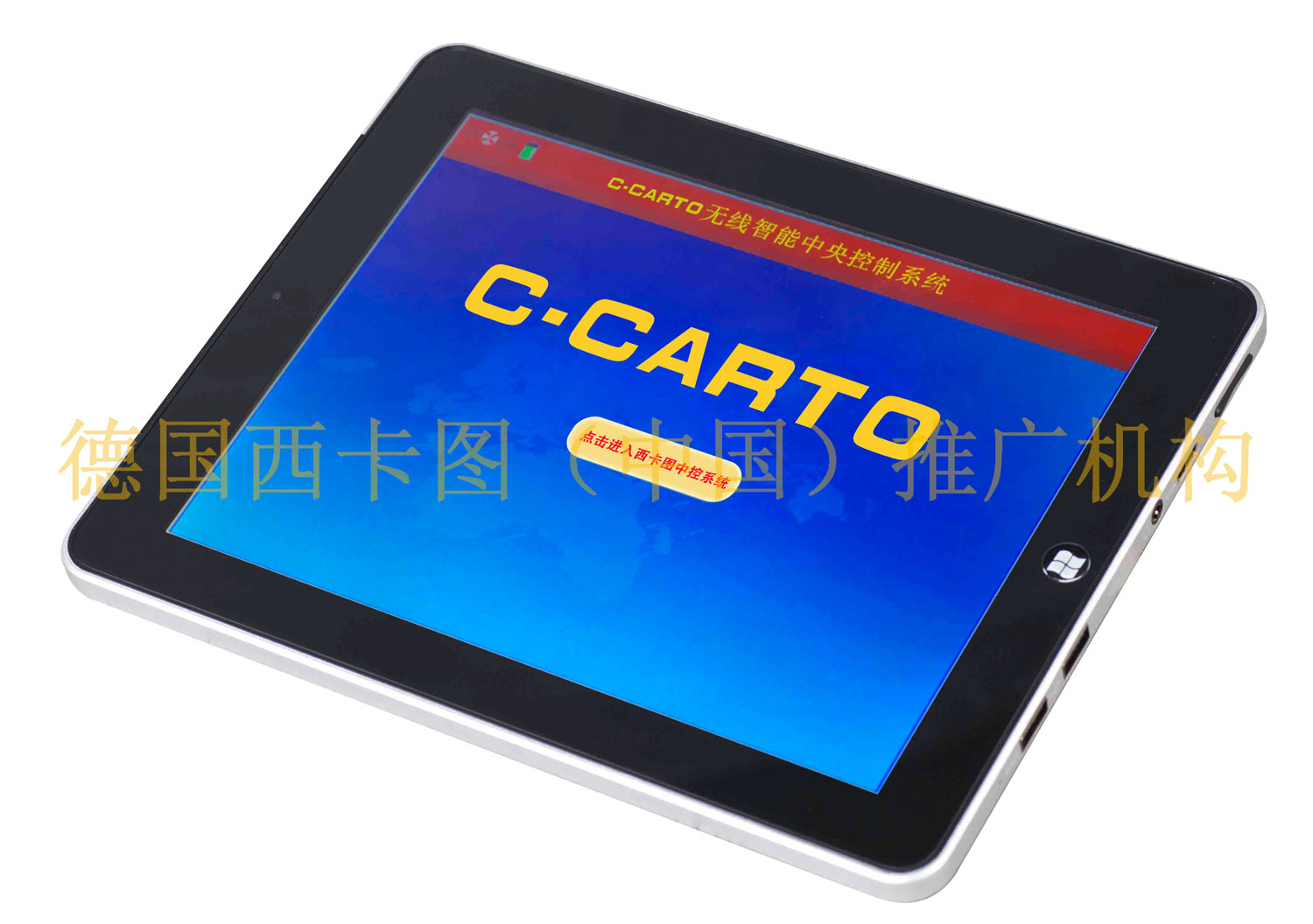

Product description:
Sica's new flagship touch control products, built-in 54 MBPS wireless WiFi module and central control console to achieve seamless two-way communication, display part adopts the mainstream standard of 4:3 screen display, 10 inches 32-bit true color TFT screen, touch screen resolution 1024 x 768 pixels, relative to the market mainstream touch-screen color reduction degree is more real, visual effect is better; Random provide Chinese/English interface editing software, support 3 d / 2 d keys, video, graphics, images, animation and other interface elements, support wireless video "picture in picture", according to the user by editing software for touch screen operation interface for humanized design; Upload interface using usb interface to the user program, several times higher than ordinary serial port speed, operation simple intuitive graphical user interface, control of the peripheral equipment more easily, various operations tend to be more humanized.
Product features:
1. Using Microsoft Windows system, realize dynamic interface
4:3 2.10 inch TFT LCD touch screen, and 1024 x 768 pixels, a stronger visual operation
3. The built-in bluetooth module, WiFi, and wired Ethernet network to achieve two-way communication with the host, support 3 g the Internet.
4. The user can set the system commonly used parameters, support custom style
5. Has the touch screen calibration function
6. The built-in 32 gb SSD
7. The built-in 2 gb of memory, can be increased to 4 gb of memory
8. Using intelligent three core lithium ion batteries, higher energy density, higher security, explosion-proof
9. Interface aspects including combined audio interface, two USB interface, one HDMI output, DC - In. To provide users with more external function
10. The power supply, 110-240 - v AC, DC = = 19 v 2.1 A
Technical parameters:
Display mode |
650 k color TFTLCD display |
Display size |
10 inches wide (diagonal) LED backlit mirror Multi - Touch screen display, with IPS technology, 1024 x 768 pixels, support for multiple languages shows at the same time |
The user interface |
Dazzle colour control interface, the user can edit, supports text, graphics, images, 3 d / 2 d buttons ; |
The built-in hard disk |
16 gb SSD |
The built-in memory |
2 gb of memory (DDR3) |
The control mode |
Wireless WiFi, and wired Ethernet, two-way |
The operating system |
Microsoft Windows8 |
CPU |
Low voltage version of Intel ATOM N455@1.66G processor, 1024 KB l2 cache ; |
The data download |
Upload TF card, USB interface |
Bus supports |
E-Bus |
Overall dimensions |
240mlong*188mmwide*18mmthick |
The weight of the |
1.0KG |
