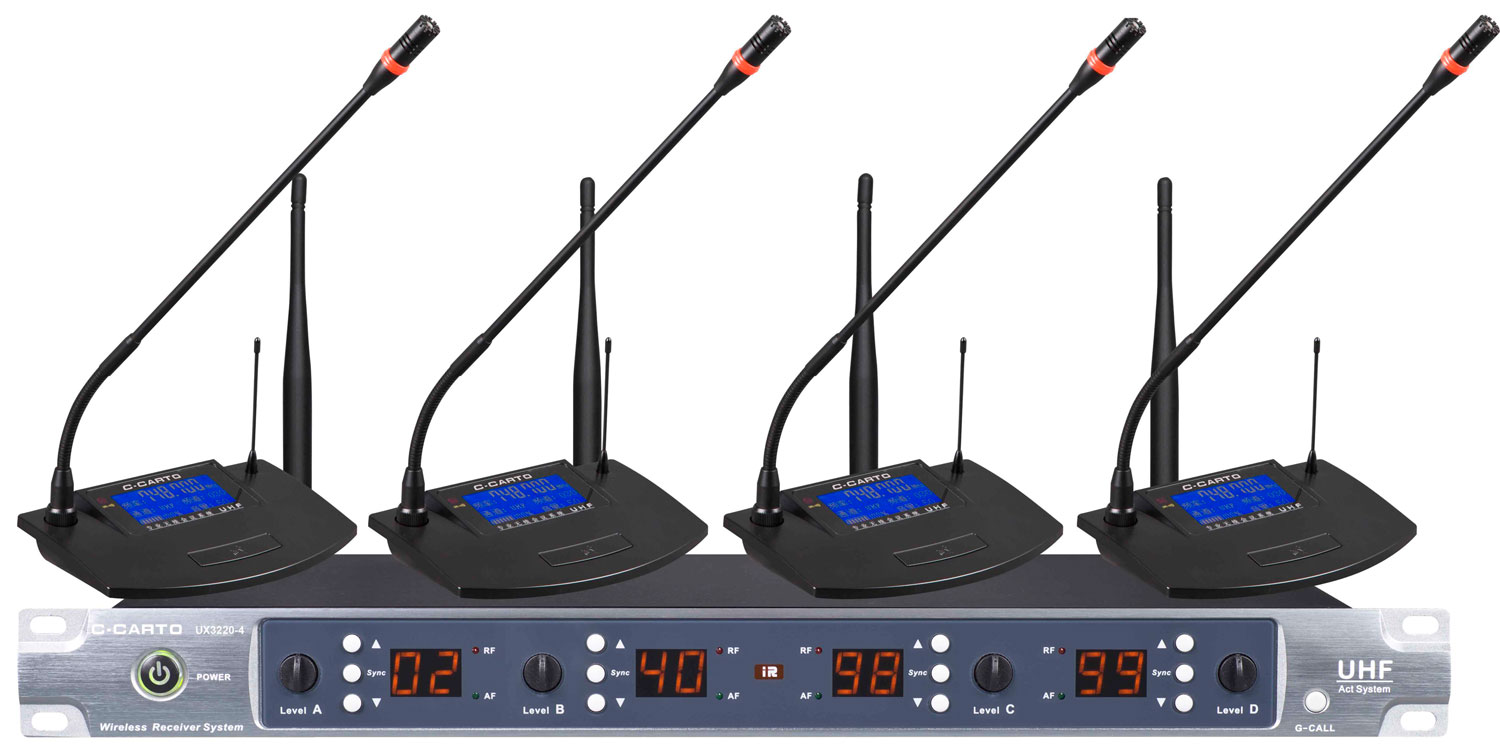

UX3220-4 (yituo 4)

This series of products for infrared frequency of four-channel wireless meeting microphone, with less noise interference of UHF frequency PLL phase locking technology, microcomputer CPU control, noise interference. 396 channels to choose from, regardless of A, B, C, D, it is more convenient to use. All metal material standard chassis, metal panel configuration per channel receiver respectively, with LED digital display, each channel volume by encoder, avoid long time use to produce noise and so on. Host respectively provide balanced audio output socket, every road and mixed unbalanced output, comprehensive to meet the needs of all kinds of connections. Microphone configuration LED lattice screen, display the working state of the receiver, an unobstructed, high-grade beautiful generous, adopt imported from silent mute switch and high-fidelity imported condenser cartridge, make good noise reduction. For senior meeting engineering installation use of first choice.

Receiver parameters:
Frequency range: 730-850 hz
• adjust way: FM
•Maximum deviation: plus or minus 50 KHZ
•Sensitivity: 18 dbuv (adjustable)
•Signal-to-noise ratio: 89 db or higher
• audio response: 60 hz to 15 KHZ (plus or minus 3 db)
• audio/balance output: 0-300 mv / 300 Ω
•Dynamic range: 105 db or higher
• working voltage: DC 12 v
• working current: 1000 ma
•Working temperature: - 10 ℃ to + 40 ℃
•Transmitter parameters
•Frequency range: 730-850 MHZ
•Transmission power: 12 mw
•Frequency stability: plus or minus 0.005% or less
• modulation mode: FM
•Maximum deviation: plus or minus 50 KHZ
•Frequency, frequency selection: receiver choice, infrared to determine emitter
  working frequency
• work power: DC4.5 V (1.5 V AA * 3)
• working current: ma 130 or less
•Working temperature: - 10 ℃ to + 40 ℃
